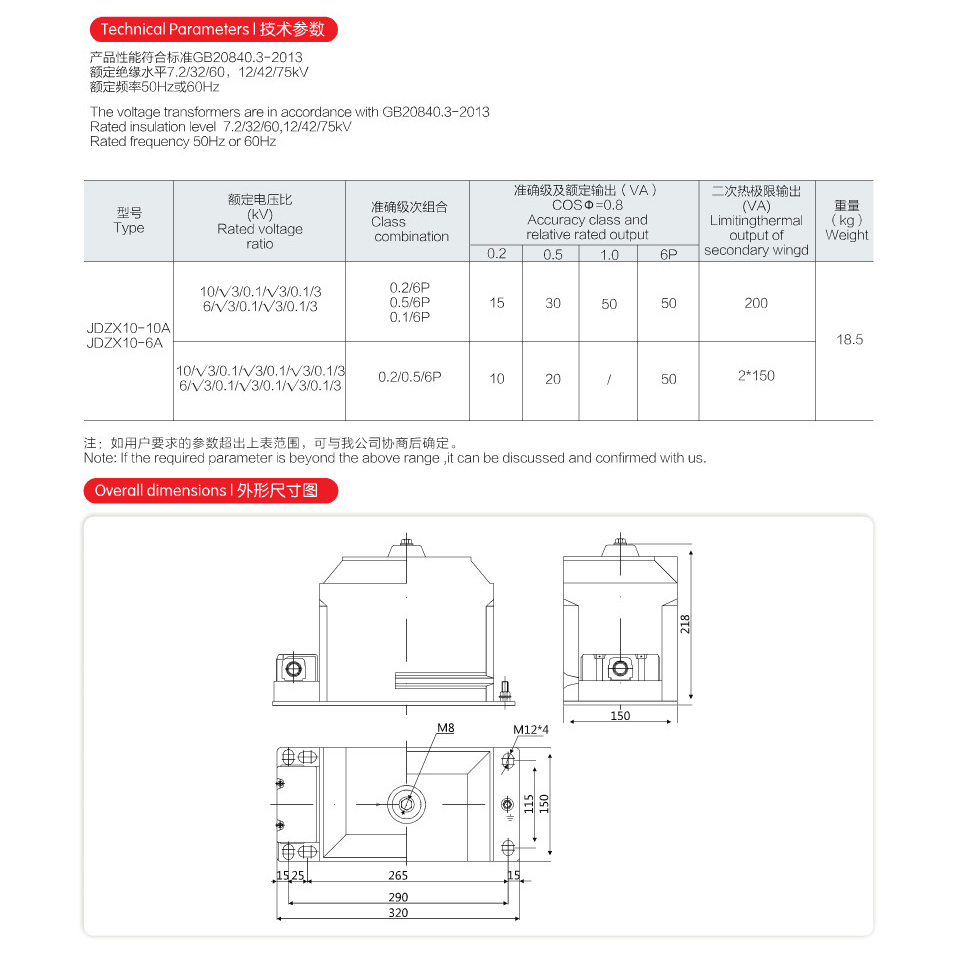

一、技術參數
產品性能符合標準GB20840.3-2013
額定絕緣水平7.2/32/60，12/42/75kV
額定頻率50Hz或60Hz
The voltage transformers are in accordance with GB20840.3-2013
Rated insulation level 7.2/32/60,12/42/75kV
Rated frequency 5OHz or 6OHz
|
型號
Type
|
額定電壓比
Rated voltage ratio
|
準確級次組合
Class combination
|
準確級及額定輸出(VA)
COSΦ=0.8 Accuracy class and relative rated output
|
二次熱極限輸出（VA)
Limitingthermal output of secondary wingd
|
重量 (kg)
Weight
|
|
0.2
|
0.5
|
1.0
|
6P
|
|
JDZ×10-10A JDZ×10-6A
|
10/v3/0.1/√3/0.1/3
|
0.2/6P 0.5/6P 0.1/6P
|
15
|
30
|
50
|
50
|
200
|
18.5
|
|
6/√3/0.1/√3/0.1/3
|
|
10/√3/0.1/√3/0.1/√3/0.1/3
|
0.2/0.5/6P
|
10
|
20
|
/
|
50
|
2*150
|
|
6/√3/0.1/√3/0.1/√31/0.1/3
|
注:如用戶要求的參數超出上表范圍,可與我公司協商后確定。
Note: If the required parameter is beyond the above range ,it can be discussed and confimed with us.

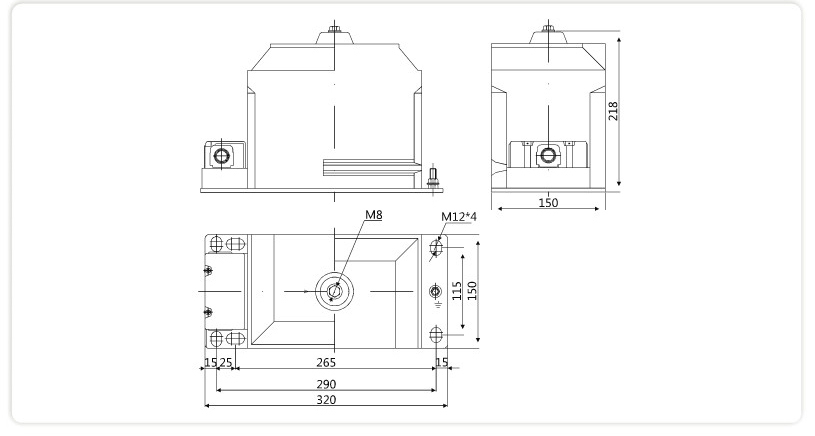

二、外形尺寸圖
